This PVC additives auto dosing machine is dedicated for plastic extruder production lines, replacing error-prone manual weighing of stearic acid, wax, titanium dioxide, carbon black and other PVC additives. Equipped with 4–10 stainless steel bins and imported Mettler Toledo weighing sensor, it achieves weighing tolerance less than 10g per batch. Fully sealed pipeline plus dust collector keeps workshop dust-free. Controlled by Siemens PLC and touch screen, it stores unlimited formulas, auto generates production reports, cuts labor cost and avoids chemical harm to workers.
| Quantity: | |
|---|---|
To avoid the the workers manual dosing mistake, we developed this PVC additives auto-weighing machine to instead of traditional manual weighing. It can weigh the additives automatically, such as stearic acid, wax, titanium dioxide, whitener, carbon black etc. This system could avoid the mistake of manual weighing and also keep the workshop clean.
This PVC additives auto dosing machine has the features of high accuracy, high speed, low tolerance etc.
1. The tolerance is less than 10 gram/batch.
2. it can storage numberless formulas according to your need.
3. all the electrical part adopt famous brand to ensure the accuracy and stability, we use American brand weighing sensor: METTLER TOLEDO
4. Our scada software assess the daily/weekly/monthly reports of total production, material to be consumed, batch recipe, printing, break down alarm etc, these datas can be downloaded by USB for further record and analysis.
5. We can do 5-10 bins for your choice.
The Advantages of our auto-weighing/batching/metering/dosing machine(compared with traditional manual way)
1.Avoid manual operation fault
2.Auto dosing system adopt computer control, it improves the material weighing accuracy
,and avoid the chemical hazard to operator.
3.Save the labor cost and improve the production efficiency,
in addition, powder running in the sealing circuit pipes and our dust collector system can avoid the environment pollution and keep your workshop clean.
This system could auto weighing 4-10 kinds of powder or granules additives.
Ultra-low weighing tolerance: Each batch error is less than 10g, effectively avoiding unstable PVC product caused by inaccurate manual proportioning.

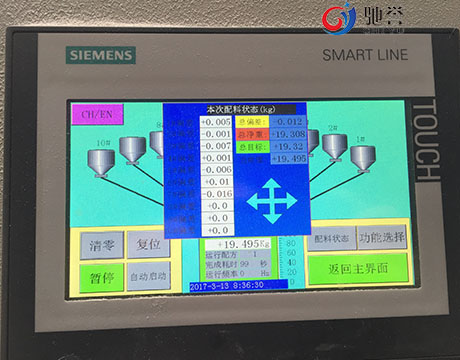

Mass formula storage capacity: Unlimited formulas can be stored on the touch screen, quickly switch between different PVC product recipes with one click.
World-class core components: Adopts USA Mettler Toledo high-precision weighing sensor; all control modules use Siemens brand electrical parts with CE & UL certification.

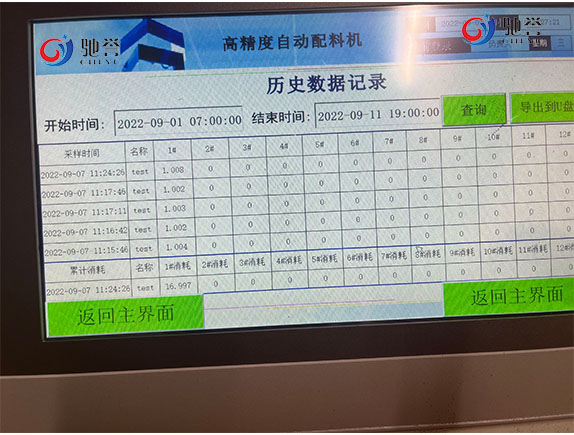

Intelligent data statistics: Built-in SCADA system automatically generates production reports including total output, raw material consumption, batch records and fault alarm logs, all data downloadable via USB flash drive.
Flexible bin configuration: Optional 4/5/6/7/8/9/10 bins to match different PVC formula varieties.
Automatic speed adjustment: The system intelligently adjusts feeding speed according to the weight proportion of each additive, ensuring fast and stable feeding without bridging or blockage.
Complete dust-proof design: Sealed conveying pipeline + supporting dust collector prevents powder leakage and keeps the workshop clean.
Plug-and-play assembly: Each silo is an independent module, all internal wiring finished before delivery, simple on-site installation.
| Parameter Item | Standard Specification |
|---|---|
| Optional Material Bin Quantity | Min 4 bins, Max 10 bins |
| Single Batch Weighing Cycle | 15kg / 120 seconds |
| Single Batch Weighing Tolerance | ＜10g |
| Weighing Sensor Brand | Mettler Toledo (USA imported) |
| Silo Material | SUS304 Stainless Steel |
| Main Control System | Siemens PLC + Touch Screen |
| Formula Storage | Unlimited groups |
| Data Export Method | USB flash disk download |
| Matching Material Form | Powder, small granule PVC additives |
| Supporting Production Line | PVC plastic extruder line |
