This high-pressure powder pneumatic conveying system is customized for long-distance and large-volume dry powder delivery. Equipped with conveying booster, its max horizontal distance reaches 1500m and vertical height 50m. It runs at low material speed with ultra high material-gas ratio from 10 to 85kg/kg, cutting air consumption and operating cost. It supports single-point feeding to multi-point distribution, widely applied in chemical, plastic, rubber and food industries for debagging, conveying, dosing and weighing. We have mature turnkey projects in Israel food factories.
| Quantity: | |
|---|---|

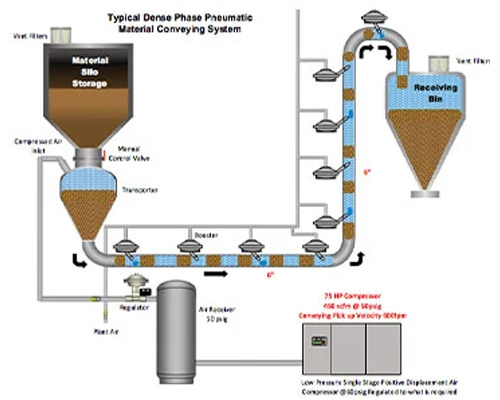

This high-pressure dense phase powder pneumatic conveying system adopts positive pressure conveying principle. With high working pressure range of 0.2MPa~0.5MPa, matched special conveying booster can realize ultra-long-distance material delivery beyond ordinary conveyors.
The system controls material flow at low speed during transportation, which greatly reduces friction collision between powder and pipeline inner wall, effectively lowers abrasion of both conveying pipes and raw materials, and avoids crushing fragile powder materials.
It owns ultra-high material-gas ratio of 10kg~85kg powder per kg compressed air. Compared with dilute phase conveying equipment, compressed air consumption is significantly reduced, which brings long-term low operation cost for factories.
Flexible process layout is supported: one feeding inlet can connect multiple discharging outlets to supply different production equipment synchronously, so the whole production line design becomes simpler without repeated conveying equipment investment.

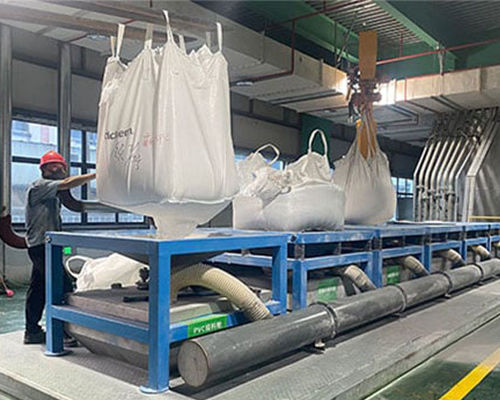

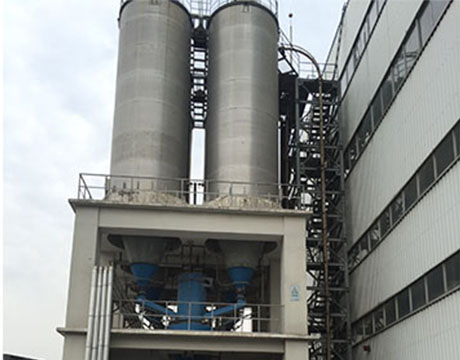

The complete set of system can be matched with automatic bag breaking station, storage silo, quantitative dosing scale and weighing unit, forming integrated raw material handling production line for food, chemical and plastic factories.
| Parameter Item | Standard Technical Index |
|---|---|
| Working Conveying Pressure | 0.2MPa ~ 0.5MPa (adjust by material gravity & distance) |
| Required Air Source Pressure | ≥ 0.45MPa |
| Material-Gas Ratio | 10kg ~ 85kg powder / per kg air |
| Conveying Speed Range | Initial speed 0.5m/s, terminal speed 12m/s |
| Max Horizontal Convey Distance | 1500m |
| Max Vertical Convey Height | 50m |
| Optional Auxiliary Device | Conveying Booster |
| Applicable Material State | All kinds of dry powder |
| Supporting Process | Debagging, conveying, dosing, automatic weighing |

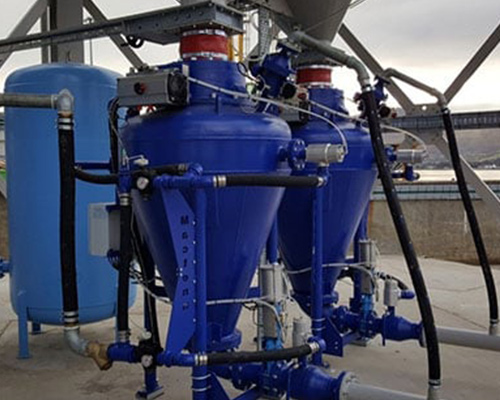

Client Name: Gadot Biochemical Industries Ltd.
Plant Location: Haifa, Israel
Construction Year: 2019
Final product: Food industry
Plant for: Debagging, pneumatic conveying system, Dosing and weighing.
Ultra long-distance conveying capacity: Standard horizontal transport distance up to 1500m, vertical height 50m; add special conveying booster to realize super long-distance transportation that ordinary low-pressure vacuum conveyors cannot finish.
Low abrasion protection design: Material flow speed is controlled at low level, friction and collision between powder and pipeline wall are greatly reduced, protect fragile food and chemical powder from breakage, extend pipeline service life.
Ultra-high material-gas ratio & low running cost: 10~85kg powder per kg compressed air, air consumption is far lower than dilute phase conveying equipment, save electricity and gas expense for long-term factory operation.
Single-point to multi-point flexible distribution: One feeding port can supply multiple production equipment at the same time, simplify workshop pipeline layout and reduce redundant equipment cost.
Wide industry compatibility: Perfectly match chemical, plastic, rubber and food production lines, can be customized into food-grade sanitary stainless steel pipeline structure.
Mature overseas turnkey project experience: Stable food factory operation case in Haifa, Israel, reliable quality for global overseas buyers.
Fully enclosed dust-free conveying: Whole transport process adopts sealed pipeline operation, no dust overflow, meet food and chemical environmental protection production standards.
