Application and Introduction
Powder dilute phase pneumatic conveying system, also known as lean phase pneumatic conveying system, is a mature and widely used pneumatic material conveying technology in modern industrial production. The system essentially adopts low-pressure and high-velocity airflow to realize continuous material transportation. It features a low material-to-air ratio, allowing materials to be stably suspended in the airflow for suspension flow conveying. This conveying method has strong compatibility with materials, and is basically not restricted by particle size, particle shape and material density. It is especially suitable for fine powder materials with low bulk density and low air retention performance.
As a professional industrial conveying solution, our dilute phase pneumatic conveying system supports customized design according to on-site process requirements and different industrial scenarios. With more than 20 years of industry manufacturing experience, we are a leading manufacturer of dilute phase and lean phase pneumatic conveying equipment. The system is widely matched with bulk bag loading systems, realizing integrated operations of powder conveying, transferring and bulk packaging loading, which greatly improves the automation level of factory powder processing.
Types of Lean Phase Conveying System

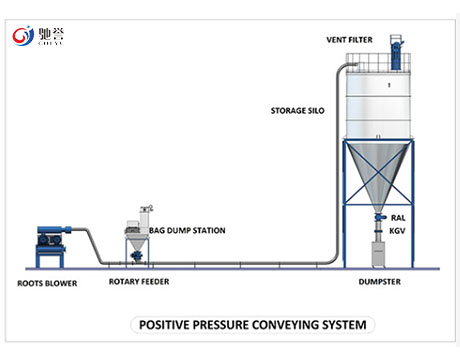

The positive pressure dilute phase pneumatic conveying system operates under working pressure higher than atmospheric pressure. Compared with vacuum negative pressure conveying systems, it has larger conveying capacity and is more suitable for medium-distance bulk material conveying scenarios. The system is equipped with professional diverter valves, which can easily realize sequential conveying and multi-point feeding of materials to multiple destination receiving points, meeting the production demand of one-line multi-point distribution.

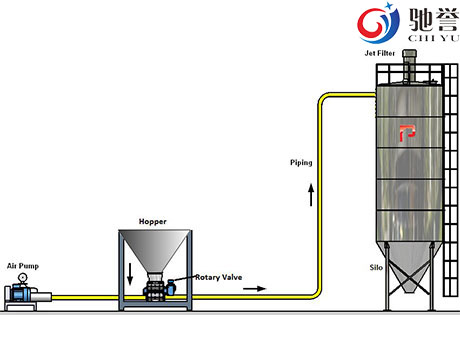

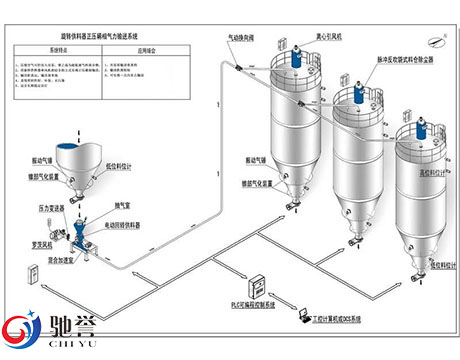

In addition, the positive pressure system supports multi-feeding-point feeding into a single public conveying pipeline. Through reasonable air volume matching and supporting special rotary air lock valves, it ensures stable air pressure in the pipeline, uniform material feeding and no material backflow, realizing efficient and stable continuous conveying operation.
Basic System Parameters & Performance Characteristics
1. Low material degradation: The system adopts low-velocity conveying design, which avoids material crushing, cracking and particle damage caused by high-speed impact, and maximizes the integrity of raw materials.
2. Wide material adaptability: It can stably convey various types of industrial materials, including fragile materials, abrasive materials, friable materials and high bulk density granular and powdery materials, with extremely strong scene adaptability.
3. Low system wear: Low-speed airflow and suspended conveying mode reduce the friction and impact between materials and pipelines, effectively reduce the wear of conveying pipes, valves and other accessories, and extend the service life of equipment.
4. Low maintenance cost: The equipment structure is simple and reasonable, with fewer vulnerable parts and stable operating performance, which greatly reduces daily maintenance frequency and later operation and maintenance costs.
5. Clean and environmentally friendly operation: The fully closed pipeline conveying structure completely avoids material spillage and dust emission, eliminates workshop dust pollution, and creates a clean and standardized production environment.
6. Low noise operation: The overall operating noise of the equipment is low, which meets industrial environmental protection noise standards and improves the workshop operating environment.
7. Reasonable air consumption: The system operates with low air flow rate, which reduces the energy consumption of air supply equipment and realizes energy-saving production.
Core System Advantages
Strong Material Compatibility: It is not limited by material particle size, shape and density, and can adapt to fragile, abrasive, high-density and various fine powder materials, covering most industrial powder and granular materials.
Low Material Loss Rate: Low-velocity suspended conveying avoids material collision and crushing, effectively ensures material integrity, and solves the problem of material degradation and waste in traditional conveying.
Stable and Efficient Conveying: Positive pressure design has larger conveying capacity and longer conveying distance than negative pressure system, supports multi-point feeding and multi-point discharging, and improves production efficiency.
Energy Saving and Environmental Protection: Low air flow rate design reduces energy consumption; fully closed pipeline conveying achieves zero dust emission and zero material spillage, meeting modern environmental protection production standards.
Low Operation and Maintenance Cost: The equipment has simple structure, low wear degree, few vulnerable parts, low failure rate and low daily maintenance cost, which reduces long-term operating investment for enterprises.
Flexible Customization: Professional customized solutions can be provided according to user's production process, conveying distance, material characteristics and workshop layout, adapting to diversified industrial production needs.
Application Scenarios
1. Plastic and PVC industry: Conveying of PVC powder, resin powder, calcium carbonate and various plastic additives, supporting extrusion and batching production lines.
2. Chemical industry: Transportation of various chemical powders, granular materials and non-friable chemical raw materials.
3. Building materials industry: Conveying of cement powder, talc powder, quartz powder and other building material powders.
4. Food and pharmaceutical industry: Conveying of non-polluting food powder and pharmaceutical raw powder, relying on dust-free closed conveying to ensure material sanitation.
5. New material industry: Conveying of various fine powder new materials with low bulk density and easy floating.
6. Bulk bag loading scenario: Cooperate with bulk bag loading system to realize automatic conveying and bulk packaging of powder materials, suitable for factory finished material loading and warehousing.
FAQ
Q: What is a dilute phase pneumatic conveying system?
A: Dilute phase (lean phase) pneumatic conveying is a low-pressure, high-velocity suspension conveying method with low material-to-air ratio. Materials are suspended in the airflow for pipeline transportation, suitable for most powdery and granular industrial materials.
Q: What are the advantages of positive pressure dilute phase conveying system?
A: It has larger conveying capacity and longer medium-distance conveying range than vacuum system, supports multi-point feeding and multi-destination discharging, with stable operation and high production efficiency.
Q: What kinds of materials is the system suitable for?
A: It is suitable for non-friable, non-abrasive, fragile, high-density and various fine powder materials, not limited by material particle size and shape, with wide adaptability.
Q: Will the conveying process cause material damage?
A: No. The system adopts low-velocity conveying design, which avoids high-speed collision and friction of materials, effectively prevents material degradation and crushing, and ensures material integrity.
Q: Is the equipment environmentally friendly during operation?
A: Yes. Fully closed pipeline conveying realizes zero material spillage and zero dust emission, with low operating noise, meeting industrial environmental protection standards and realizing clean production.
Q: What is the later maintenance cost of the equipment?
A: The equipment has simple structure, low pipeline wear and few vulnerable parts, with low failure rate. The daily maintenance is simple and the later operation and maintenance cost is low.
Q: Can the equipment realize multi-point feeding and discharging?
A: Yes. Equipped with diverter valves and rotary air lock valves, it can realize multi-point feeding into a single pipeline and sequential discharging to multiple destinations, with flexible layout.
Q: Does the system support customized design?
A: Yes. We provide exclusive customized solutions according to user's conveying distance, material type, output demand and workshop layout, adapting to different industrial process requirements.
