Vacuum conveying system is the transport of bulk solids through a pipe by using the flow of air or other gas. Vacuum convey can be built as a pressure or vacuum system.Vacuum conveyors can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithium power industry, coatings industry, chemical industry and pharmaceutical industry etc.
| Quantity: | |
|---|---|

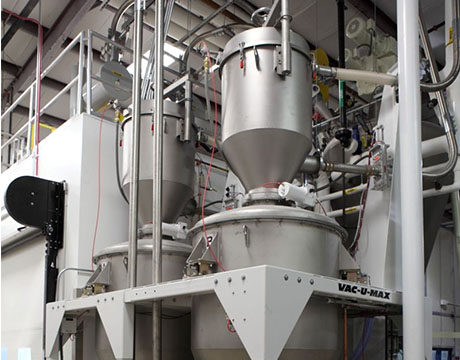

The pneumatic vacuum conveyor system operates by utilizing a high-efficiency vacuum pump to generate negative pressure, creating a controlled vacuum state at the suction nozzle and throughout the enclosed pipeline. As ambient air is drawn into the system, powder particles—such as fine sugar, roasted coffee grounds, or creamer—are smoothly entrained into the gas stream. This mixture travels rapidly through the conveying pipe until it reaches the separation hopper. Here, the gas and solid materials are effectively separated. The separated bulk material then descends into the receiving equipment. This continuous feeding and discharging cycle is precisely managed by the automated opening and closing of a pneumatic three-way valve, directed by an intelligent control center.
To ensure uninterrupted operation, this vacuum conveyor feeder is equipped with an advanced compressed air back-flushing device. During each discharge phase, a compressed air pulse automatically cleans the internal filter. This action dislodges any fine powder adhering to the filter surface, maintaining optimal suction power. Furthermore, the system integrates premium core components, including a low-pressure screw air compressor and a precision moisture-removal filtration setup. Coupled with an intelligent silo control system, it automatically shuts off the air supply when the silo is full, significantly reducing the need for manual intervention while extending the overall lifespan of the equipment.
1. Dust-free conveying and exceptionally low maintenance: The fully sealed negative pressure system ensures that sticky materials like powdered sugar or volatile coffee aromas remain contained, preventing material loss and reducing daily cleaning routines.
2. Clean easily between batches: Designed with quick-release clamps and smooth internal surfaces, operators can swiftly disassemble the unit for thorough washdowns, preventing cross-contamination when switching between different coffee roasts or sugar grades.
3. Move material in any direction: The flexible piping network can be routed vertically, horizontally, or around existing machinery, effortlessly adapting to the unique spatial constraints of your processing facility.
4. Reduce labor cost and improve safety: By automating the bulk material transfer process, facilities can reallocate manual workers to higher-value tasks while simultaneously reducing ergonomic injuries associated with repetitive heavy lifting.
5. Made by SUS304 or 316L to meet GMP sanitary standards: The entire contact surface is constructed from premium stainless steel, carrying ISO9001 and CE certifications. This ensures strict compliance with rigorous food-grade safety requirements.
6. No tools needed to change the filters: The ergonomic, tool-less maintenance design allows technicians to inspect, clean, or replace the internal filtration media in minutes, maximizing production uptime and minimizing technical delays.
Vacuum conveyors provide a highly versatile material handling solution that can be widely utilized across multiple demanding sectors, including the food processing industry, pharmaceutical industry, chemical industry, magnetic materials industry, plastic processing industry, lithium power industry, and coatings industry. In the food sector specifically, it excels at transporting delicate coffee beans, roasted grounds, granulated sugar, and fine icing sugar without degrading the particle integrity or losing essential flavor profiles. Recognizing that every production facility operates differently, we offer fully customized solutions tailored to your specific operational needs. Our engineering team evaluates your actual plant space, required throughput capacities, and the unique flow characteristics of your materials to design a flexible pipeline layout. Whether you need a compact setup for a boutique coffee roastery or a high-capacity continuous feeding system for a large-scale sugar refinery, this adaptable equipment ensures smooth integration into your existing processing line.
We understand that reliable equipment operation is critical to your daily production schedule. Therefore, we provide a complete lifecycle support system to eliminate any operational concerns and keep your facility running efficiently.
Our technical team offers detailed on-site or remote installation guidance, ensuring your pneumatic conveying system is set up correctly and calibrated to handle your specific sugar or coffee products.
We supply comprehensive operation manuals and conduct thorough training sessions for your staff, empowering them to manage daily operations, monitor intelligent controls, and perform routine maintenance with confidence.
Every vacuum conveyor is backed by a robust whole-machine warranty. In the rare event of a component issue, our responsive support network ensures rapid troubleshooting and swift parts replacement to minimize downtime.
