Product Overview
Rubber and PVC additives auto weighing system is a high-precision intelligent auxiliary batching equipment developed for PVC, rubber and plastic extrusion industries. Aiming at the problems of low efficiency, large error, easy dust pollution and unstable manual batching quality in traditional production, the equipment realizes full-automatic precise weighing and batching of various powder and granular additives such as stearic acid, wax, titanium dioxide and carbon black. The system adopts screw quantitative feeding mode, matched with imported Mettler Toledo high-precision weighing sensors and Siemens intelligent control system, with the highest control accuracy up to ±5g. It supports simultaneous weighing of 3-12 kinds of additives, with stable and efficient feeding speed. The whole machine adopts 304 stainless steel silos and international brand electrical accessories, featuring reliable performance, simple installation and convenient operation. It can effectively avoid manual weighing errors, stabilize product quality, improve workshop cleanliness, and is an essential supporting equipment for standardized and high-precision production of PVC and rubber products.
Application and introduction
The rubber and PVC additives auto weighing system is a professional intelligent batching equipment independently developed to replace traditional inefficient manual weighing operations. It is specially designed for PVC and rubber extrusion production lines, focusing on automatic and precise weighing of various small-dose auxiliary materials commonly used in plastic and rubber processing. The system is applicable for a wide range of additives including stearic acid, wax, titanium dioxide, whitener, carbon black and other powdery and granular ingredients. It can automatically complete quantitative weighing according to single-batch production formula requirements, thoroughly avoiding weighing errors, formula deviation and product quality instability caused by manual operation. Meanwhile, the fully closed automatic feeding and weighing structure effectively prevents material dust leakage, maintaining a clean, dust-free and standardized production workshop environment. The system supports automatic weighing of 5 to 12 kinds of powder or granular additives at one time, with extremely high weighing precision, and the overall weighing accuracy is controlled within 10g, meeting the high-precision batching requirements of high-end PVC and rubber products.
Main technical data
Weighing error: around 10g/bin, total weighing error is within 10g
Weighing time: around 15kg/120sec
Feeding method: by screw
Feeding motor power: 1.5kw
Feeding motor number: 1-10sets
Feeding speed adjusting: intelligent inverter
Stirring motor: 200w*2sets
Install power: 1.5kw
Actual running power: <3kw
Space required: 3400*2400*1100(L*W*H)
Min.bin number: 3
Max.bin number: 12
Weighing speed: 20kg/120 seconds
Control accuracy: ±5g
The volume of loading hopper: 150 litres/70kg
Bin raw material: SUS304
Machine configuration
Storage part
Bin number: 1-24ets
Bin volume: 150L(suitable for 70kg material)
Bin material: stainless steel
Weighing part
Metering sensor: Mettler Toledo, Switzerland brand
Weighing module: Siemens, German brand
Electrical part
PLC: Siemens, German brand
HMI: Siemens, German brand
Inverter: Taida/ABB
Contactor: Siemens or Schneider
Main Features of whole system
-
High Accuracy: It adopts top-quality weighing sensor and advanced design to reach high accuracy according to the formula. Equipped with imported high-precision metering components, the system effectively eliminates batching errors, ensuring consistent formula ratio and stable product quality for each production batch.
-
Intelligent Speed Regulation: According to the weight of the different additive in the formula, the system can adjust the feeding speed automatically. The high power feeding motor is installed in this system, so the feeding will be faster, stable and accurate. It realizes fast feeding for large dosage materials and slow fine feeding for small dosage materials, balancing production efficiency and weighing precision.
-
Reliable: The control system adopts international famous brand Siemens products. The core electrical and weighing components are well-known imported brands with stable performance, low failure rate and long service life, ensuring long-term continuous and stable operation of the equipment.
-

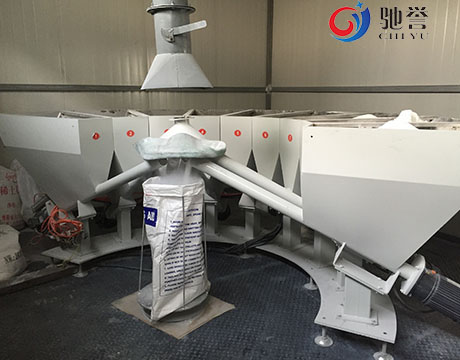

Easy Installation: This system is composed of several individual small silos. The cables between the silos and the control cabinet are connected well before shipment. It is easy for the user to install and use, greatly shortening on-site installation and commissioning cycle.
-
Easy Operation: Friendly operation interface with diagram and symbol for easy operation. The user doesn't need to revise the program. The user could set parameters on the touch screen to meet different requirement. The visual human-machine interaction design realizes parameter setting, formula switching, data monitoring and fault alarm with one click, with low operation threshold.
-
Quality Guarantee: The silos are made of 304 stainless steel. The electrics are from international famous brands that have CE or UL certificate. The whole machine complies with industrial production standards, with corrosion-resistant, durable and safe overall performance.
FAQ
Q: What materials is this automatic weighing system suitable for?
A: It is specially used for automatic weighing of various powdery and granular additives for PVC and rubber extrusion production, including stearic acid, wax, titanium dioxide, whitener, carbon black and other common auxiliary materials.
Q: What is the weighing accuracy of the equipment?
A: The single-bin weighing error is about 10g, the total overall weighing error is within 10g, and the highest control accuracy can reach ±5g, meeting high-standard formula batching requirements.
Q: How many kinds of additives can the system weigh at one time?
A: The system is equipped with 3 to 12 optional bins, supporting automatic simultaneous weighing of 5 to 12 kinds of powder and granular additives, and the maximum configurable bin number can reach 24.
Q: What is the feeding method and speed of the equipment?
A: It adopts screw quantitative feeding mode, equipped with intelligent inverter for automatic speed regulation. The standard weighing speed is 15kg/120s, and the maximum speed can reach 20kg/120s, with fast and stable feeding.
Q: What brands are the core components of the system?
A: The weighing sensor adopts Mettler Toledo from Switzerland; the weighing module, PLC and HMI adopt Siemens from Germany; the contactor is Siemens or Schneider, and the inverter is Taida or ABB, with reliable imported configuration.
Q: What are the advantages of intelligent speed regulation function?
A: The system automatically adjusts the feeding speed according to the formula dosage. It runs fast for large dosage materials and slow fine feeding for small precision dosage materials, which ensures both production efficiency and ultra-high weighing accuracy.
Q: Is the equipment easy to install and operate?
A: Yes. The equipment is pre-wired before delivery with split silo structure for easy on-site installation. The touch screen visual interface is simple and intuitive, no program modification is required, and users can freely set parameters to switch production formulas.
Q: What are the material and quality certifications of the equipment?
A: The storage silos are made of food-grade and industrial-grade 304 stainless steel with anti-corrosion and durable performance. All electrical components have CE/UL international certification, with stable and safe quality.
