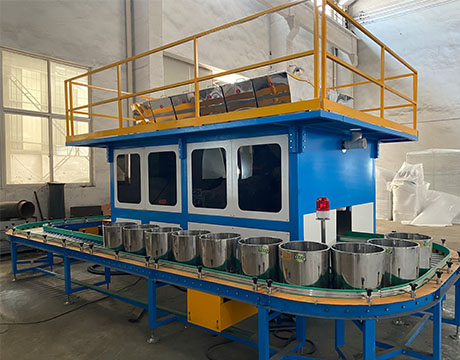

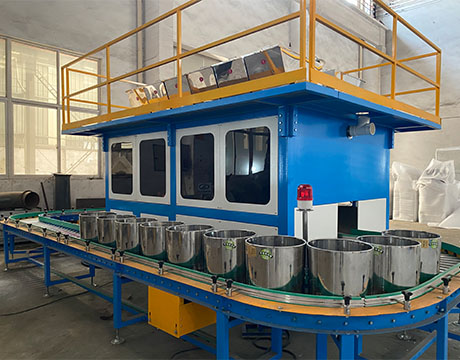

Micro Multi-ingredient Automatic Weighing Dosing Machine For Chocolates And Coffee

Mirco Multi-ingredient Automatic Weighing Dosing Machine for Chocolates and Coffee

Application and Introduction

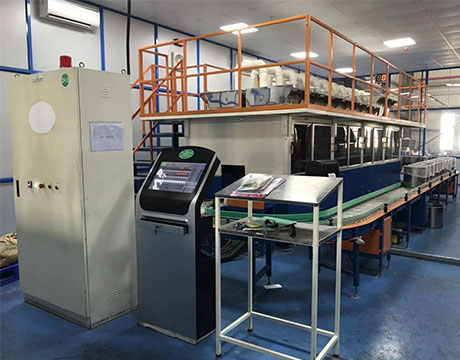

Replacing traditional manual weighing methods, this micro multi-ingredient formula weighing platform scale transforms how delicate and complex mixtures are handled on the production floor. When dealing with fine, aromatic coffee grounds or dense, moisture-sensitive cocoa powders, maintaining absolute recipe consistency is critical for the final flavor profile. This automated dosing batching system completely eliminates the inconsistencies of human measurement, ensuring every single batch replicates your exact formulation automatically while keeping the workshop exceptionally clean. Capable of automatically processing 8 to 48 different kinds of powder, pellet, or flake additives, it utilizes a highly calibrated combination of double screws, smooth conveyor belts, and electromagnetic vibration to feed materials gently and accurately. The equipment architecture integrates a material storage area, feeding system, roller conveyor, precision weighing unit, advanced dust collector, and a centralized computer control system. Designed specifically for small load material processing, it serves a wide array of demanding environments, including food production, medicine formulation, chemical processing, rubber, plastic, and forage industries. By consolidating material management, formula tracking, and barcode printing into one streamlined interface, this system delivers exceptional value through its compact space occupancy, rapid weighing speed, and exacting precision.

Re-checking and Automatic Rejection System

Safeguarding your production line against costly formulation errors, this equipment features an intelligent, multi-station simultaneous weighing architecture. As materials move through the processing sequence, the latter weighing station will automatically re-check the previous one. If the two-time weighting tolerance is over the setting precision, this specific batch weighing will be stopped immediately. However, to maintain continuous operational flow, the flagged batch will go on moving following the setting queue and will be safely rejected when it passes the valve check facility. This proactive intervention function is engineered to reduce material waste significantly and avoid big losses caused by large precision deviations during the weighing process, guaranteeing that only perfectly proportioned mixtures advance to the next manufacturing stage.

Error-Proof Mechanism for Feeding Material into Storage Tank

Human error during the initial material loading phase can compromise an entire production run. To combat this vulnerability, the dosing machine incorporates a rigorous error-proof protocol for feeding materials into the storage tank. When operators are preparing to load ingredients, they must scan the label on the chemical or food additive bag firstly. The computerized control system instantly cross-references this scanned data against the active recipe matrix. After the control system confirming no mistake, the storage tank will open automatically. If an incorrect material is scanned, the material can not be feeded to avoid feeding wrong material. This strict verification process not only protects recipe confidentiality but also ensures absolute traceability from the very first step of production.

Main Technical Parameters

Understanding the operational capabilities of your equipment is essential for optimizing plant performance. The following technical specifications detail the precise engineering tolerances and processing capacities of our micro multi-ingredient dosing machine. Every parameter is engineered to support intense, continuous manufacturing cycles while maintaining a clean and safe operational environment.

• Number of applicable dosing chemcials: 8-48 kinds
• Weighing range of electronic scale: 10-50kgs
• Weighing accuracyof electronic scale static: ≤±0.1% F.S
• Weighing accuracyof electronic scale dynamic: ≤±0.15% F.S
• Weighing accuracyof electronic scale accumulative: ≤±0.2% F.S
• Gradient of weighing display instrument: 1g, 2g, 5g
• Dosing cycle time and productivity continuous dosing capacity reached: 240-360 bags/ shift
• Dust contents in tail air after dust removal system: ≤8mg/m3
• System equipment noise: <75dB
• Installed capacity: 15-25kW/Set

Key Equipment Features

Engineered for maximum reliability and operational efficiency, this system integrates advanced mechanical design with intelligent software controls. The following features highlight how the equipment optimizes production workflows while protecting ingredient integrity.

• Δ Realized remote management and control and after-sales support, improved management level across your entire facility.
• Δ Using high resolution electronic scale and weighing display instruments, enabled high weighing accuracy for sensitive recipe formulations.
• Δ Muli-stations simultaneous weighing and dosing, continuous dosing capactity reached 200-600 bags/shift, resulted in high productivity for demanding schedules.
• Δ Key elements and components are all import or from joint venture company's products, ensured stability and reliability during continuous heavy-duty operation.
• Δ Field bus working system (i.e. setup of PLC substations), can automatically check the running conditions, giving alarm location and solution prompting as abnurmalities occur, for facilitation for troubleshooting and maintenance.
• Δ Rectangular circulation conveying line layout, open Chinese-English M-M interface, system working process display in multi-areas, monitoring and operation functions, all make use easier and simpler for operators.
• Δ Automatically testing the system running conditions, gives alarm location as abnormalities occur, and troubleshooting prompts to minimize operational downtime.
• Δ Lower energy consumption design, avaiable of safety interlocking protection measures, ensured energy saving and safety for all floor personnel.
• Δ Optimized dust removal and recovery system design, equipped with bag filter for each machine, free from dust flying and leakage, enabled good environment and no raw material wasting.
• Δ Flexible layout (incl. 1 and 2 stroy layouts, suitable for 8-48 kinds of raw materials), wide suitability for meeting the spatial demands of different users.

To provide a complete overview of the system's physical and operational capacities, the following specifications outline the bin configurations, processing speeds, and material construction. The integration of food-grade materials ensures compliance with stringent hygiene standards, making it ideal for delicate applications.
