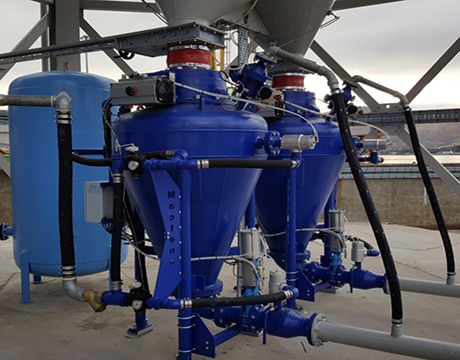

This long-distance powder pneumatic conveying system adopts high-pressure dense phase design for large-volume dry powder delivery. Equipped with conveying booster, its max horizontal conveying distance reaches 1500m and vertical lifting height 50m. Materials move at low speed to reduce pipe and material abrasion, with ultra 10–85kg/kg material-gas ratio to cut air cost. It supports single-point feeding to multi-point distribution, widely used in chemical, plastic, rubber and food industries, with complete turnkey project in Israel food factory.
| Quantity: | |
|---|---|

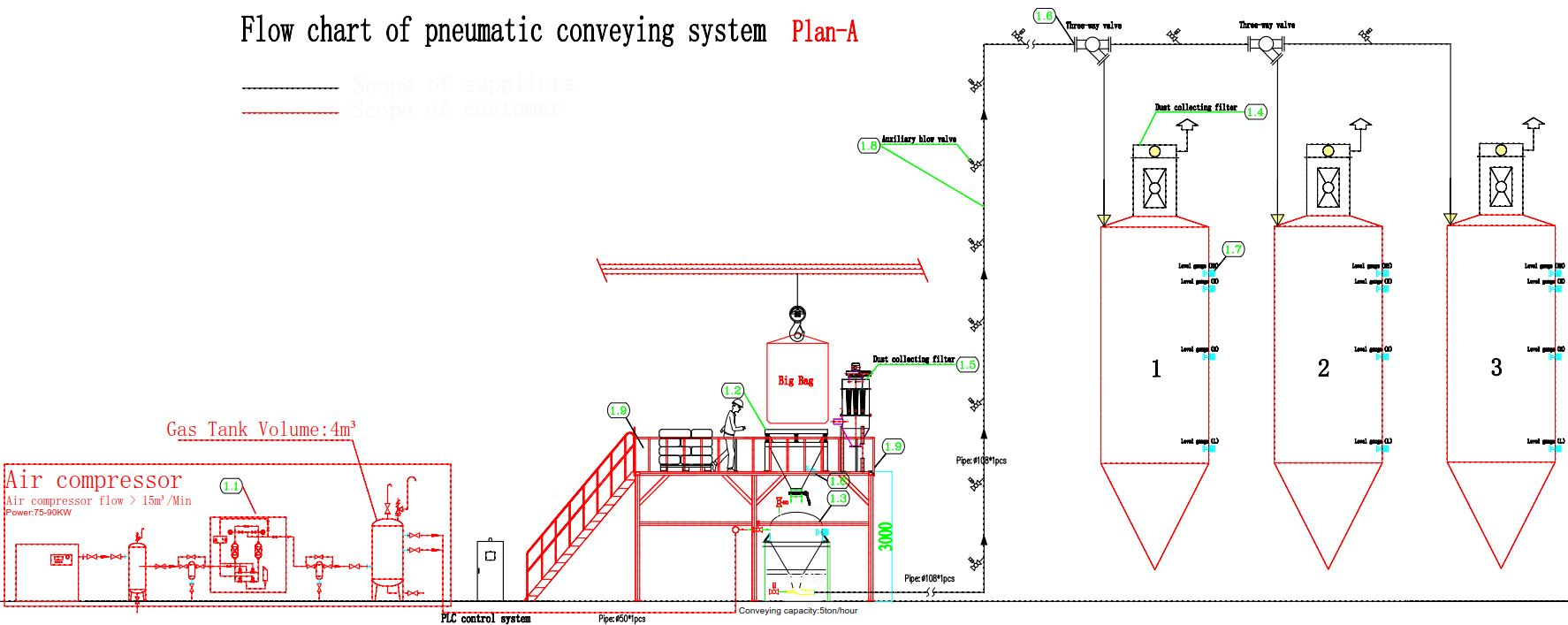

The pipeline layout is flexible: one feeding inlet can connect multiple discharging outlets to supply different production equipment synchronously, simplifying the whole plant process layout. It can form a complete raw material processing production line when matched with automatic bag breaking machine, silo and dosing weighing machine. We have mature overseas engineering cases in Israel food raw material factories, covering full processes of unpacking, conveying and automatic batching.
High working pressure design, matched booster realizes ultra-long-distance large-capacity conveying;
Low material conveying speed reduces abrasion on both powder and conveying pipelines;
Ultra high material-gas ratio of 10~85kg/kg, low compressed air consumption and low operation cost;
Flexible single-point feeding to multi-point distribution design, easy production line layout;
Fully closed pipeline conveying, zero dust overflow to meet environmental and food production standards;
Wide compatibility for chemical, plastic, rubber and all kinds of dry food powder;
Complete supporting matching: can be combined with bag breaker, silo, dosing scale to form integrated production line.
| Parameter Item | Standard Specification |
|---|---|
| Working Conveying Pressure | 0.2MPa ~ 0.5MPa (adjusted by material gravity & distance) |
| Minimum Required Air Source Pressure | ≥ 0.45MPa |
| Material-Gas Ratio | 10kg ~ 85 powder per kg compressed air |
| Conveying Speed Range | Initial 0.5m/s, Terminal 12m/s |
| Max Horizontal Convey Distance | 1500m |
| Max Vertical Lifting Height | 50m |
| Optional Auxiliary Part | Conveying Booster |
| Applicable Materials | All kinds of dry powder, tiny granules |
| Matching Processes | Debagging, conveying, automatic dosing & weighing |
Client Name: Gadot Biochemical Industries Ltd.
Plant Location: Haifa, Israel
Construction Year: 2019
Final product: Food industry
Plant for: Debagging, pneumatic conveying system, Dosing and weighing.
Super long conveying capacity: Max horizontal distance reaches 1500m and vertical height 50m; the supporting booster can realize ultra-long-distance transportation unavailable for ordinary low-pressure conveyors.
Low abrasion protection design: Slow material flow reduces friction and collision, preventing fragile food and chemical powder from crushing and extending pipeline service life.
Low running cost with high material-gas ratio: Consumes far less compressed air than dilute phase machines, saving electricity and gas expenditure for long-term production.
Flexible multi-point distribution: One feeding port can supply multiple production machines at the same time, simplifying pipeline layout and reducing redundant equipment investment.
Dust-free closed conveying: Whole pipeline is fully sealed without powder leakage, complying with food and chemical environmental protection standards.
Wide industry adaptability: Perfectly match chemical, plastic, rubber and food production lines, can be customized into food-grade stainless pipeline structure.
Mature overseas project experience: Stable long-term running food factory project in Israel, reliable for global overseas buyers.
Complete integrated supporting: Can be combined with bag breaker, storage silo and dosing scale to form one-stop raw material handling system.
