Liquid Mixing Tank/Liquid Mixer

Name: Liquid Mixing Tank/Liquid Mixer
Rating: 5.0 (87 reviews)

This liquid mixing tank is used to mixing material like juice, milk, drink, chemicals, paint,cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 material and meet with the food grade.

Availability:

Quantity:



Inquire Add to Basket

Application and feature

Overview

The beverage mixing tank is a food-grade multi-functional blending and mixing equipment. Made of high-quality SUS304 or SUS316L stainless steel, it fully complies with food hygiene standards. Equipped with an adjustable-speed electric stirring system, it supports two heating modes: electric heating and steam heating. With professional heat insulation structure, complete standard interfaces and optional automatic CIP cleaning function, it integrates mixing, heating, heat preservation, sterilization and cleaning, suitable for material blending in food, beverage, cosmetic and chemical industries.

Application

This beverage mixing tank is widely applicable for mixing and processing various liquid materials, including juice, milk, beverages, chemical liquids, and cosmetic products. It covers diversified production demands for food, daily chemical and general industrial blending.

Equipped with an electric stirring system, the mixer supports adjustable motor speed. Operators can flexibly control the stirring intensity according to different material characteristics, ensuring uniform mixing results for different formulas.

The whole tank is constructed of high-quality SUS304 stainless steel, fully complying with food-grade hygiene standards. The safe and non-toxic material ensures no contamination during production, which is suitable for strict food and cosmetic manufacturing environments.

This mixing tank features simple operation and convenient daily cleaning. It can be optionally installed with an automatic CIP spraying head to realize thorough and effortless tank cleaning, effectively improving production hygiene and cleaning efficiency.

In terms of heating configuration, the equipment provides two standard heating methods: electric heating and steam heating. Customers can choose the suitable heating solution according to their actual production process and site conditions.

Feature

The mixing tank is professionally equipped with high-temperature resistant thermal insulation materials. Adopting anti-aging polyurethane foam or EPE insulation structure, the tank can effectively maintain internal temperature, reduce heat loss, and ensure stable and consistent material temperature during the whole production process.
All connection interfaces of the tank adopt international standard ISO quick chuck fittings for convenient installation, disassembly and maintenance. The inner liner is made of imported high-grade SUS304 or SUS316L stainless steel. The inner wall is finely mirror-polished with a surface roughness lower than Ra≤0.4μm, achieving a smooth, residue-free and easy-to-clean inner surface. Meanwhile, the outer surface supports various customized treatments, including matte finishing, glossy polishing, matt sandblasting and cold color coating to meet different equipment appearance and workshop standards.

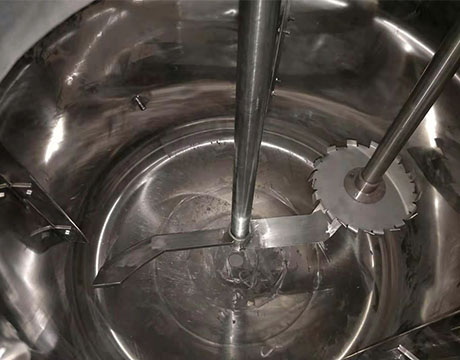

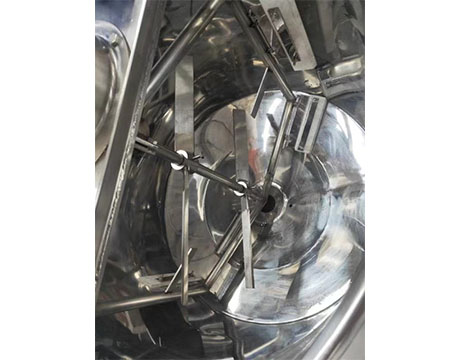

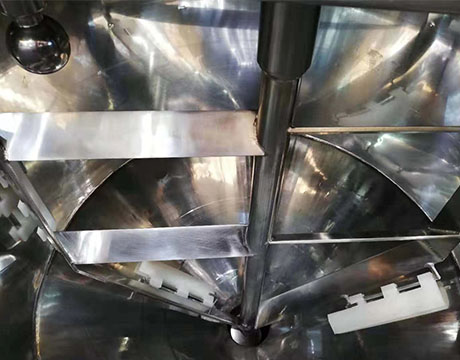

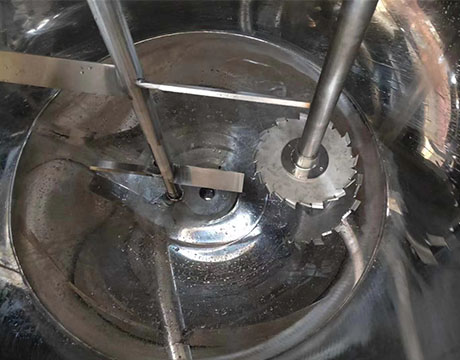

The stirring system adopts high-quality imported sanitary mechanical seals or magnetic stirring sealing devices. The advanced sealing structure effectively prevents liquid leakage, avoids bacterial contamination, and meets strict food and cosmetic sanitary production requirements. In addition, the stirring speed is fully optional and adjustable, allowing flexible speed setting according to different material viscosity and mixing process demands.
The tank is reserved with complete and standardized functional nozzles and ports to support diversified production and cleaning requirements. It is equipped with multiple level gauge port options, including static pressure type, capacitive type, non-contact type, ultrasonic type and glass tube type. The tank also contains an air breathing port, digital or dial type thermometer interface, CIP cleaning port, observation mirror, integrated endoscopic anti-light lamp, SIP sterilization port, liquid inlet and outlet ports, as well as a standard sanitary manhole for convenient operation, observation and equipment maintenance.

Advantages

High hygiene level: Food-grade stainless steel and mirror-polished inner wall avoid residue and cross-contamination, suitable for high-standard food and beverage production.
Integrated multi-function: Integrates mixing, heating, heat preservation, sterilization and automatic cleaning to save equipment procurement cost.
Strong adaptability: Dual heating modes and adjustable stirring speed adapt to liquid materials with different viscosities and characteristics.
Safe and reliable sealing: Imported high-end sealing device ensures no leakage during operation and eliminates production risks.
Energy saving: High-quality heat insulation layer reduces temperature loss and lowers long-term production energy consumption.
Durable and low maintenance: Anti-aging and corrosion-resistant materials ensure long service life and simple daily maintenance.

Volume(L)	Dimensions(D×Hmm)	Total Height(mm)	Motor Power(KW)
300	800×610	1350	2.2
500	800×1000	2100	3
1000	1100×1220	2420	3
1500	1300×1220	2420	5.5
2000	1450×1220	2420	7.5
3000	1600×1500	2700	11
5000	2300×1800	3500	22
10000	2300×2900	3700	37
More	According to customer's requirement

FAQ

Q1: What materials is the beverage mixing tank suitable for?

A: It is widely applicable for mixing and blending juice, milk, various drinks, cosmetic liquids and liquid chemical raw materials, covering food, beverage, daily chemical and fine chemical industries.

Q2: Is the mixing speed of the tank adjustable?

A: Yes. The equipment is equipped with an adjustable-speed electric motor, and the stirring speed can be freely adjusted according to different material characteristics and production needs.

Q3: What heating methods does this mixing tank support?

A: It supports two optional heating methods, electric heating and steam heating, which can be customized according to customer’s production process requirements.

Q4: Does the tank meet food-grade production standards?

A: Yes. The inner tank is made of food-grade SUS304 or SUS316L stainless steel with mirror polishing treatment, which fully meets food hygiene and sterile production standards.

Q5: Is the equipment easy to clean?

A: The smooth mirror-polished inner wall leaves no material residue. It supports manual cleaning and can be equipped with an automatic CIP spraying head to realize fully automatic cleaning, which is labor-saving and efficient.

Q6: What is the sealing structure of the agitator?

A: It adopts imported sanitary mechanical seal or magnetic stirring seal device, which has good sealing performance, no leakage and no bacterial growth during operation.
