Product Overview

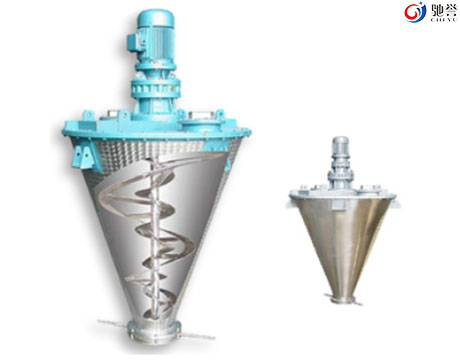

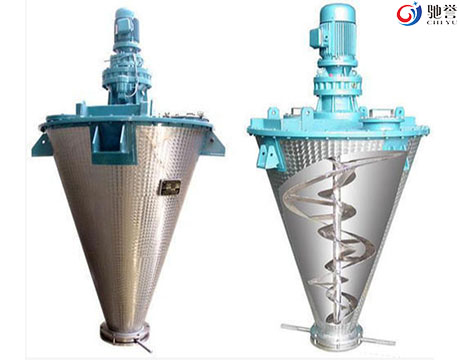

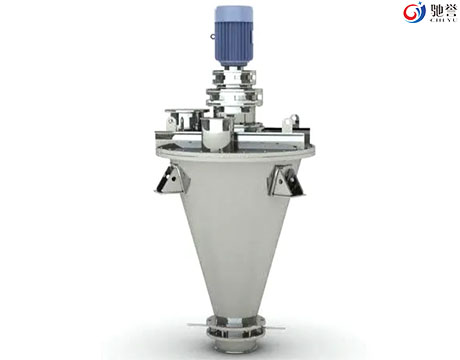

SHJ series double auger cone mixing machine is a vertical high-efficiency and high-precision mixing equipment, widely applicable to pharmacy, chemical, feed and other industries for powder and particle mixing. It is especially suitable for mixing materials with large differences in specific gravity and mixing ratio. Driven by motor and cycloidal pinwheel reduction device, the double-screw structure realizes compound motion of rotation and revolution inside the cone cylinder. Through multi-dimensional material convection, shearing and diffusion, the machine achieves fast and uniform mixing effect. The equipment adopts standard 304 stainless steel material, supports personalized customization of heating/cooling jacket, bracket and voltage, and has complete certification, stable performance and wide application range.
Product Advantages
1. High precision and efficient mixing. The compound rotation and revolution motion realizes three-dimensional material mixing, solving the mixing difficulty of materials with different specific gravity and proportion, with fast mixing speed and uniform mixing effect.
2. Reliable quality with authoritative certification. The machine complies with ISO9001, CE and SGS certification standards, with standardized production and stable and reliable overall performance.
3. Safe and durable material configuration. The main body is made of 304 stainless steel, anti-corrosion and wear-resistant, meeting industrial production and sanitary standards, and supports customized material requirements.
4. Flexible personalized customization. It can be equipped with heating or cooling jacket, matching bracket and different working voltage according to customer on-site demands, adapting to diverse production scenarios.
5. Vertical double-auger compact structure. The vertical cone layout occupies small space, and the internal double-auger design ensures sufficient material mixing, perfectly suitable for powder and particle materials such as feed and chemical raw materials.
6. Complete model specifications. Multiple models from 0.1m³ to 12m³ are available, with flexible load coefficient and stable power configuration to meet different batch production demands.
Main Usage
The SHJ series double auger cone mixing machine is a kind of high-efficient and high-precise mixer that is widely applied by the industries of pharmacy, chemical, and fodder for the mixing of all kinds of powder material, especially for the mixing of the powder materials with great disparity in its specific gravity or in its mixing proportion.
Specialty
The rotation and revolution of the mixer is controlled by a set of motors and the cycloidal pinwheel reduction device. The mixer has the features of quick mixing and wide milling.
Working Principles
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions including:
1.The revolution of the screw along the wall making the material conduct a revolution motion.
2.The rotation of the screw making the material rise along the screw from the cone bottom.
3.The compound motion of the rotation and revolution of the screws making partial material be absorbed into the screw cylindroid. Meanwhile, under the motion ot centrifugal force, the partial material in the screw cylindroid discharges radially.
4. The descended material drops under its sole weight. The four kinds of motions effect convection,shearing and diffusion in the cone, thus quick mixing can be achieved.
Why choose you?
1; this mixer meeting ISO9001 and CE and SGS certificate
2: this mixer is made up of stainless steel 304, we also can do as consumer requirement
3: this mixer is vertical design, inside double auger, very suitable for mix the feed, granule.etc
4: this mixer can add the heating or cooling jacket( as consumer requirement)

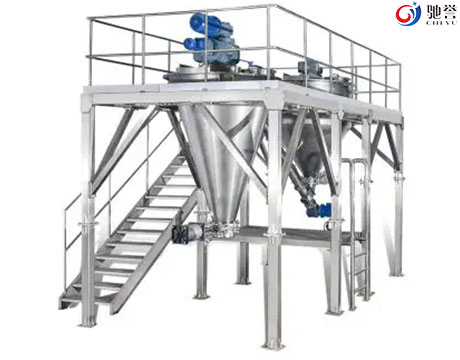

5: this mixer need match the stent( as consumer requirement)
6: the voltage: 220v or 380V or as consumer requirement
7: guarantee: 1 year
8: payment: 30% TT in advance, 70% need to pay us before deliver the goods
9: deliver time: 30 days
Technical data
Type | Total Volume(M³) | loads coefficient | Motor power KW | Size(L×W×H) | Net weight(kg) |
|---|
LT-0.1 | 0.1 | 0.4-0.8 | 0.37 | 1190×740×770 | 330 |
LT-0.3 | 0.3 | 0.4-0.8 | 0.37 | 2030×630×980 | 720 |
LT-0.5 | 0.5 | 0.4-0.8 | 0.37 | 2320×730×1130 | 980 |
LT-1 | 1 | 0.4-0.8 | 0.75 | 2800×920×1320 | 1700 |
LT-1.5 | 1.5 | 0.4-0.8 | 0.75 | 2800×920×1320 | 1800 |
LT-2 | 2 | 0.4-0.8 | 1.5 | 3180×1020×1550 | 2100 |
LT-3 | 3 | 0.4-0.8 | 1.5 | 3310×1120×1640 | 3000 |
LT-4 | 4 | 0.4-0.8 | 2.2 | 3750×1290×1820 | 3980 |
LT-5 | 5 | 0.4-0.8 | 2.2 | 4220×1400×1990 | 4620 |
LT-6 | 6 | 0.4-0.8 | 3 | 4220×1500×2100 | 6180 |
LT-8 | 8 | 0.4-0.8 | 4 | 4700×1610×2260 | 8200 |
LT-10 | 10 | 0.4-0.8 | 5.5 | 5520×2960×2720 | 9520 |
LT-12 | 12 | 0.4-0.8 | 7.5 | 5720×3010×2840 | 9950 |
If you want to get detailed information about the horizontal ribbon mixer price, you can click here to contact us!
FAQ
Q: What materials is the double auger cone mixer suitable for?
A: It is mainly used for mixing various powder and granular materials in pharmaceutical, chemical and feed industries, especially suitable for materials with large differences in specific gravity and mixing ratio.
Q: What is the working principle of this cone mixer?
A: Driven by motor and reducer, the double screws perform rotation and revolution compound motion. The materials realize revolution lifting, axial rising, radial discharging and gravity falling, forming convection, shearing and diffusion to complete rapid uniform mixing.
Q: What certifications does the equipment have?
A: The mixer has passed ISO9001, CE and SGS certifications, with qualified quality and compliant performance for international and domestic industrial production standards.
Q: Can the equipment support functional customization?
A: Yes. It can be customized with heating/cooling jacket, matching bracket and different voltages (220V/380V) according to actual production needs.
Q: What are the structural characteristics of the mixer?
A: It adopts vertical cone structure with internal double augers. The whole machine is made of 304 stainless steel, featuring compact structure, small floor space, corrosion resistance and long service life.
Q: What is the production cycle and after-sales guarantee?
A: The delivery cycle is 30 days, and the equipment enjoys a 1-year warranty service to ensure stable operation for customers.
Q: What is the payment term of the equipment?
A: Adopt 30% TT advance payment, and the remaining 70% shall be paid before delivery.
