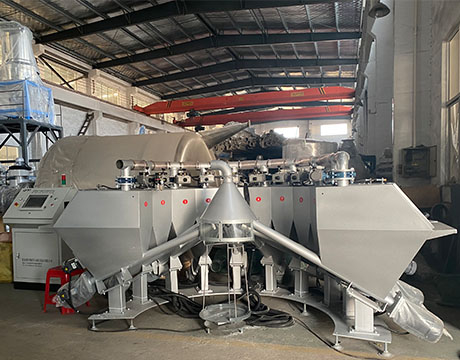

This chemical automatic dosing machine is specially developed for PVC extrusion workshop. It fully replaces manual chemical additive weighing to avoid human operation error. It can automatically weigh 5 to 10 kinds of powder and granular additives such as stearic acid, wax and titanium dioxide. Featuring 10g ultra-high weighing precision, full dust-free screw feeding, low power consumption and imported core components, it improves batching efficiency and keeps extrusion workshop clean and tidy.
| Quantity: | |
|---|---|
This chemical automatic dosing machine is dedicated automatic additive weighing system designed for full-series PVC extrusion production processing. Traditional PVC additive production adopts manual weighing mode, which is easy to cause weighing deviation, low batching efficiency, chemical powder dust pollution and high labor cost.
To solve these drawbacks, our company launches this automatic screw feeding dosing equipment. It supports automatic proportional weighing of 5-10 kinds of common PVC powder and granular additives, including stearic acid, wax, titanium dioxide, whitener, carbon black and other auxiliary materials.
The machine finishes one-batch automatic quantitative feeding independently, with total weighing error controlled within 10g. Equipped with Swiss Mettler Toledo weighing sensor and German Siemens electric control series parts, the machine owns stable running performance, intelligent frequency conversion speed regulation, closed screw dust-free feeding structure. It configures independent stainless steel storage bins, optional 1-9 sets bin combination to match different additive formula demands, which greatly reduces manual participation and optimizes PVC workshop production environment.
8. Modular bin design, 1-9 bins optional, flexible collocation for different production formula.
Parameter Item | Specific Data |
|---|---|
Weighing error | Around 10g/bin, total weighing error within 10g |
Weighing efficiency | 15kg/120sec |
Feeding method | Screw automatic feeding |
Single feeding motor power | 1.5kw |
Feeding motor quantity | 1-9 sets optional |
Speed adjustment mode | Intelligent inverter adjustment |
Stirring motor parameter | 200w*2 sets |
Installed total power | 1.5kw |
Actual running power | <3kw |
Overall dimension(L*W*H) | 3400*2400*1100mm |
3. Bin material: Full food-grade stainless steel, anti-corrosion, easy cleaning
2. Weighing module: Imported Siemens module from Germany
4. Contactor: Siemens or Schneider optional brand
Q1: What kinds of materials can this chemical dosing machine weigh?
A1: It can weigh 5-10 kinds of powder and granular PVC production additives, including stearic acid, wax, titanium dioxide, whitener, carbon black and other common auxiliary materials.
A2: The single bin weighing error is about 10g, and the total batch finished weighing error is controlled within 10g, which meets high-precision PVC production formula standard.
A3: Yes. It adopts fully closed screw feeding structure, all chemical additives are conveyed inside sealed pipeline, no powder leakage and floating, realizing dust-free workshop operation.
A4: Sure. The machine supports 1 to 9 sets bins optional collocation, customers can match bin quantity according to their own additive types.

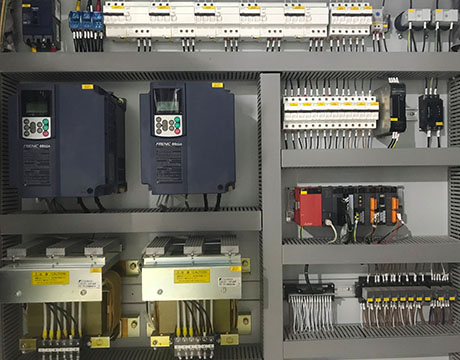

A5: It adopts Swiss Mettler Toledo weighing sensor, German Siemens weighing module, PLC and HMI, matched with Taida/ABB inverter, Siemens/Schneider contactor for stable performance.
A6: The total installed power is 1.5kw, the actual running power is less than 3kw, low energy consumption, long-term power saving for PVC factories.
