This integrated system integrates automatic feeding, dosing, mixing and vacuum conveying modules. It realizes automatic weighing, mixing and conveying of powder and granular materials to plastic extruders. Featuring high automation, full dust-free operation and high working efficiency, it perfectly solves traditional manual production defects. It is widely applicable for SPC floor, PVC pipe, plastic window profile and other PVC plastic products, with verified 2020 SuZhou Eletile factory application case.
| Quantity: | |
|---|---|
Engineered for continuous, high-volume extrusion facilities, this computer-controlled automatic feeding dosing mixing conveying system fundamentally transforms raw material handling. Designed specifically for large-scale PVC processing enterprises manufacturing SPC flooring, PVC pipes, and plastic window profiles, the equipment smoothly adapts to accommodate LVT, WPC, and even specialized rubber production lines. By addressing the severe limitations of the traditional manual mixing process—which remains viable only for low-output, small factories—this system establishes a fully automatic unmanned material processing loop. From the initial raw material feeding and classified storage to proportional dosing, homogeneous mixing, and final finished compound feeding to the extruder, every phase operates with mechanical precision.
The whole set equipment adopts a vacuum closed pneumatic conveying structure to entirely avoid powder dust leakage, maintaining a pristine workshop environment. It supports the synchronous feeding and dosing of virgin PVC raw material, heavy CaCO3 filler, and plastic recycled material. Engineered with seven independent matched functional units, it forms a complete closed-loop production line capable of sustaining a high-throughput processing capacity ranging from 500kg/h up to 2500kg/h. The whole feeding and batching process is strictly controlled by a central computer program, ensuring stable weighing precision and a highly adjustable material formula.
It completely eliminates manual participation in the whole production process, drastically improves workshop production efficiency, and strictly complies with international environmental dust-free production standards. Demonstrating its industrial reliability, this system has been officially put into operation in Eletile Co., Ltd SuZhou factory in 2020, specially used for supporting the full-process automatic feeding, dosing, mixing, and conveying work of their active SPC floor extrusion production line.
The traditional manual mixing and handling mode is only suitable for small plastic factories, plagued by three inherent operational defects that hinder enterprise scaling:
Artificial mixing is extremely easy to make a mistake. Because this is a physically demanding repetition work, the worker is tired easily. As concentration drops throughout a shift, the weighing precision is not assured, directly compromising the structural integrity and visual consistency of the final extruded profiles.
Labour intensity is exceptionally large, requiring a massive headcount to transport and load heavy bulk materials. Consequently, the human cost is unsustainably high from a long term view, severely diminishing overall plant profitability and operational flexibility.
Direct physical contact with volatile chemical raw material and fine airborne powders continually harms the worker’s health. Without a closed-loop system, factories struggle to maintain clean air standards, increasing the risk of compliance violations and respiratory hazards.

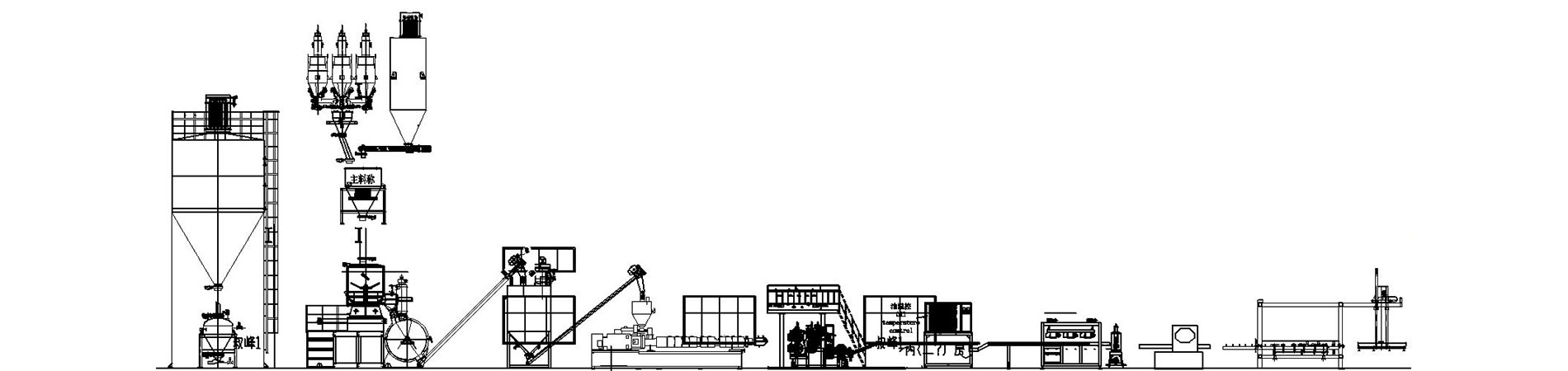

The complete PVC automatic mixing conveying system consists of seven highly integrated core parts, each engineered for specific material handling tasks:
Firstly, solve all manual production defects fundamentally. It completely avoids manual weighing error, slashes long-term labor cost expenditure, and prevents the physical damage caused by chemical raw material contact.
Secondly, computer full automatic control. Driven by an advanced PLC system with digital storage for complex formulas, it realizes true unmanned feeding, weighing, dosing, mixing and extruder feeding, reducing on-site worker quantity greatly.
Thirdly, full dust-free closed conveying. Adopt vacuum pneumatic sealed pipeline and silo conveying, ensuring absolutely no dust floating, easily meeting strict workshop environmental protection requirements and occupational health standards.
Fourthly, high and stable dosing precision. Computer fixed material ratio replaces subjective manual operation, utilizing precise load cells to guarantee consistent finished SPC floor and PVC product quality cycle after cycle.
Fifthly, multi-material compatible capability. Support the synchronous processing of PVC new material, dense calcium carbonate filler and irregular recycled plastic material, perfectly meeting factory waste recycling production demands without clogging.
Sixthly, integrated modular design. The seven functional units match perfectly, making the entire plant highly convenient for rapid installation, streamlined debugging and straightforward daily maintenance.
Seventhly, wide industry applicability. Beyond its primary function, it is fully compatible with SPC floor, LVT/WPC flooring, PVC water pipe, plastic window profile and other full-series PVC or rubber product production lines.
Eighthly, mature field application effect. Successfully put into production in 2020 SuZhou factory, demonstrating long-term stable operation, highly suitable for large-volume continuous extrusion production environments.

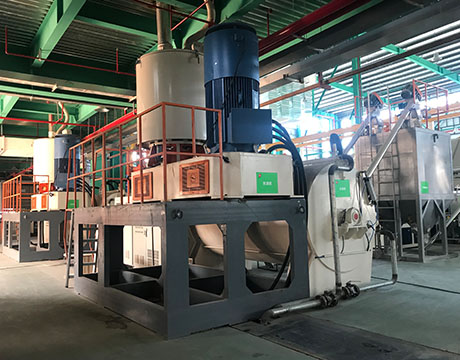

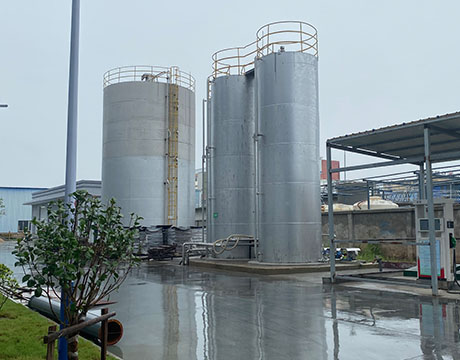

Client Name: Eletile Co., Ltd
Plant Location: SuZhou, China
Construction Year: 2020
Final product: SPC floor
Plant for: Automatic feeding system,Dosing and weighing,Mixing system,Conveying system.

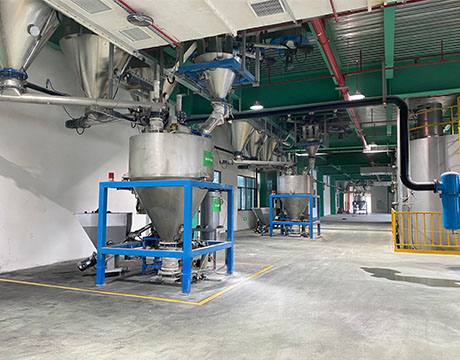

Since its initial commissioning, this specific material handling architecture has maintained exceptional throughput, providing a continuous, precisely measured stream of compounded resin to the extrusion lines. The enclosed pneumatic infrastructure has transformed the facility's air quality, replacing the haze of manual powder dumping with a clean, highly organized, and remarkably quiet automated workflow.
Investing in a large-scale material handling infrastructure requires comprehensive technical partnership. We provide an end-to-end turnkey engineering service designed to ensure your facility achieves maximum operational efficiency from day one. Our support begins with customized blueprint planning tailored to your specific workshop layout and production capacity requirements. Following manufacturing, our expert engineering teams execute rapid, modular on-site installation, minimizing disruption to your existing operations. We conduct rigorous field debugging and system calibration under real-world conditions. Furthermore, we deliver intensive, hands-on operator training, empowering your internal staff to confidently manage the PLC controls, execute formula changes, and perform routine maintenance. This unwavering commitment to after-sales support guarantees the long-term, stable operation of your equipment.
