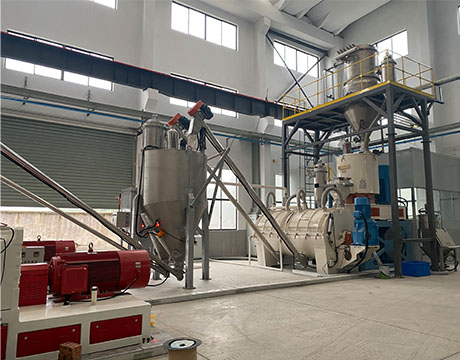

This system includes automatic feeding dosing mixing pneumatic conveying system, vacuum conveying system, etc. it is suitable for automatic weighing, mixing and conveying of all powder and chemical additives to plastic extruder. It has the advantages of high automation, no dust and high efficiency; Suitable for PVC wall panel, PVC pipes, Window profiles, SPC floor and other PVC industry customers.
| Quantity: | |
|---|---|
This advanced automatic weighing compounding conveying system is specially developed for large-scale production factories engaged in PVC pipes, SPC floors and PVC wall panels. It is a full-process automatic batching, mixing and conveying solution designed to completely replace traditional manual weighing, batching and material handling modes that are only suitable for small factories. The whole system is fully computer-controlled, realizing automatic loading, vacuum conveying, storage, precise dosing, compound mixing and automatic extruder feeding. It covers all production links from raw material feeding to final compound delivery, effectively solving the defects of low precision, high labor cost, high labor intensity and occupational health risks caused by manual operation. With highly integrated and automated design, it supports continuous, stable and standardized production of PVC profiles and panels, greatly improving factory production efficiency and product consistency.
5. Strong industry applicability. The system is perfectly adapted to the production of PVC pipes, SPC floors, PVC wall panels and other PVC products, with stable operation and strong compatibility with mainstream PVC extruder equipment.
For large PVC pipe/SPC floor/PVC wall panel production factory, Advanced automatic weighing compounding conveying system is essential, Traditional mixing method is that people weigh and batch material manually, then move the mixed material to extruder also manually, this old way just fit for the small factory, and has many defects:
1.Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. the weighing precision is not assured.
2.Labour intensity is large, human cost is high from long term view.
3.Chemical raw material harms the worker’s health.

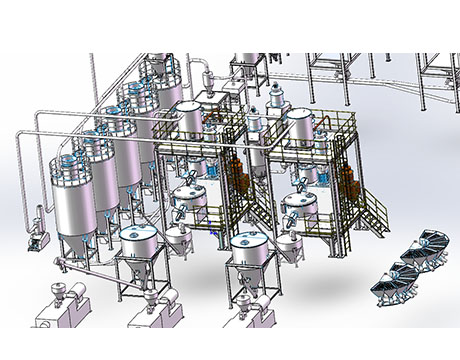

In order to solve these problems, our company design this PVC automatic mixing weighing conveying system which the computer can automatically control weighing and batching, and feeding to extruder.the complete PVC mixing system consists of:

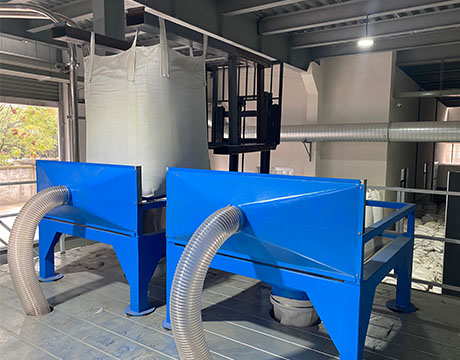

1.Loading station(PVC loader+Caco3 loader+Recycle matterial).
2.Pneumatic vacuum conveying system.
3.PVC/Caco3/Recycle material storage silo.

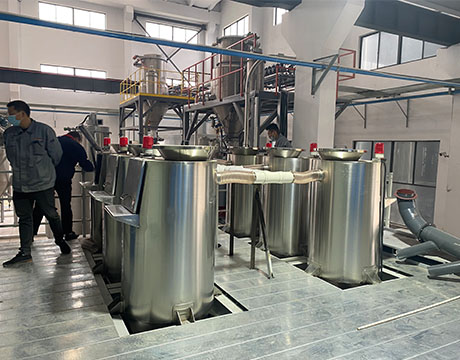

4.Automatic raw material and additives dosing system for mixer.
5.PVC mixing unit.
6.Compound storage silo.

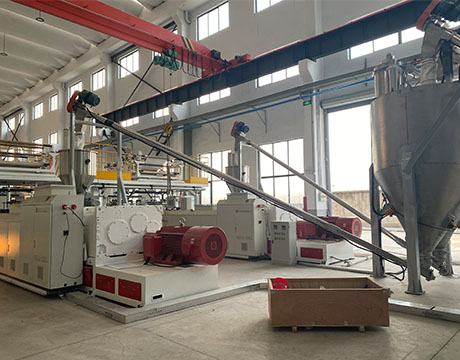

7.Automatic feeding system for PVC extruder.
Client Name: SuHul-AL-Khaleej Co., Ltd
Plant Location: Saudi Arabia
Construction Year: 2019

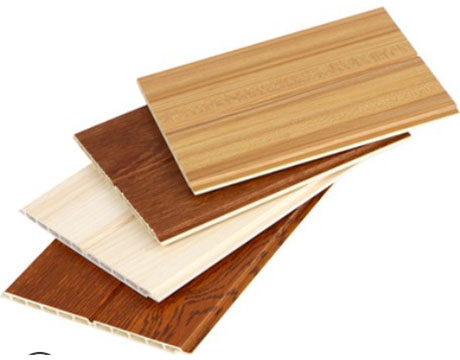

Final product: PVC wall panel
Plant for: Automatic feeding system,Dosing and weighing,Mixing system,Conveying system.
