It is a low speed mixer, therefore no heat generated during mixing.Suitable for power or pellets mixing especially heat sensitive chemicals mixing. It provides a very good distribution and mixing than other type low speed mixers.
| Quantity: | |
|---|---|
The food powder processing sector demands absolute precision, impeccable hygiene, and consistent batch uniformity. Designed specifically for these rigorous environments, this horizontal ribbon mixer integrates advanced blending dynamics with a highly efficient vacuum conveyor system. Upon inspection, the meticulously polished stainless steel surfaces offer a smooth, crevice-free tactile finish, engineered to prevent bacterial accumulation and simplify daily maintenance. By combining rapid homogenization capabilities with a closed-loop feeding mechanism, this equipment minimizes airborne dust, protects operator health, and ensures that sensitive ingredients—ranging from infant formula to complex spice profiles—retain their exact nutritional and flavor profiles without degradation.

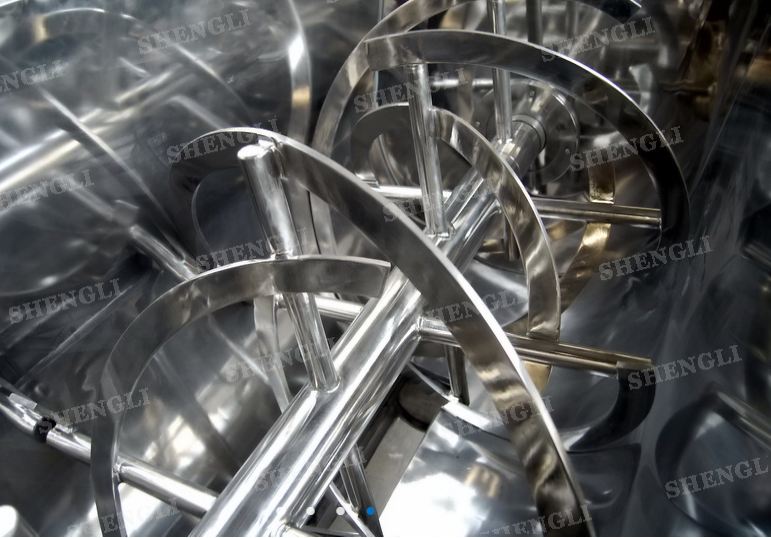

In the U-shape container, a precisely engineered arrangement of positive and negative ribbons handles a vast array of dry solids. The special proportion and pitch of the two ribbons can be custom-rectified to match the specific bulk density, flowability, and quantity of your raw materials. This ribbon blender demonstrates exceptional efficacy when processing cohesive powders or viscous mixtures that typically resist uniform dispersion.
Beyond standard dry blends, this system is tailored for the stringent safety requirements of food production facilities. Handling combustible organic dusts like flour, powdered sugar, and starch requires specialized protection. Therefore, the mixer can be configured with ATEX-certified explosion-proof features (Zone 20/21/22). By incorporating strategically placed explosion relief panels and certified flame arresters, the equipment mitigates ignition risks, ensuring absolute compliance with facility safety mandates while processing volatile food-grade powders.
The core mixing action relies on a sophisticated convective flow generated by the dual-ribbon agitator, ensuring rapid and thorough material dispersion.
A. The solid horizontal axes drive the materials in a continuous up-and-down motion, breaking up localized clusters.
B. Simultaneously, the outer ribbon gathers the material from the outer sides and draws it toward the center, while the inner ribbon pushes the material from the center back toward the sides.
C. Every rotation of the screw mechanism forces the materials to undergo intense axial and radial movement. This relative cyclical motion guarantees that even micro-ingredients are distributed evenly, achieving intensive mixing ends in a fraction of standard processing times.

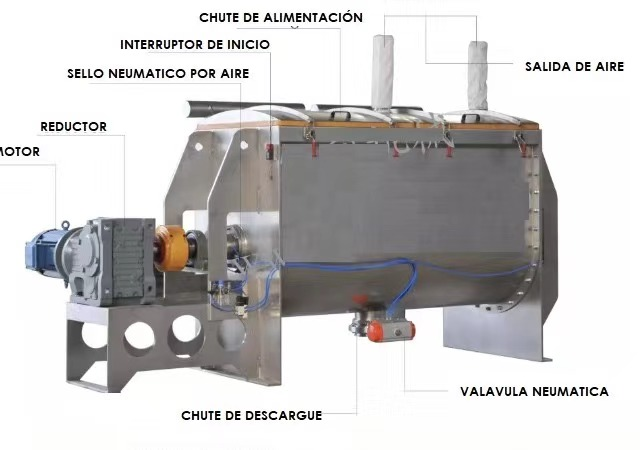

To support this dynamic movement, the mixer utilizes a heavy-duty transmission system featuring a direct-coupled gear motor equipped with an elastic coupling and variable frequency drive (VFD). This configuration allows for smooth, jerk-free startups even under full load conditions, significantly reducing mechanical vibration and emitting only a steady, controlled hum during operation. The structural framework relies on thickened stainless steel plates reinforced with strategic stiffeners and self-aligning bearings. This rigid construction ensures the main shaft remains perfectly aligned without deformation, even when agitating high-density or highly viscous batches.
A. Rapid and Gentle Homogenization: Fast mixing speeds satisfy the rigorous demands of blending materials with vastly different physical properties and bulk densities. Despite the speed, the rotation operates strictly under the critical speed threshold. This gentle agitation minimizes shear force, drastically reducing the effect of fragmentation to the material (e.g., fragile crystal particles or freeze-dried components).
B. Optimized Spatial Footprint: The thoughtfully engineered lower height of the container provides exceptional convenience for facility installation, fitting comfortably into areas with restricted vertical clearance without sacrificing batch capacity.
C. Energy-Efficient Configuration: The positive and negative ribbons are strategically set up at the same level, forming an optimized mixing environment of low power but high efficiency.
D. Food-Grade Safety and Sealing Technology: To meet the strictest sanitary regulations (such as MOCA directives), the shaft ends are equipped with specialized elastomer rotary seals. These advanced barriers effectively block foreign contaminants and prevent powder leakage, ensuring absolute hygiene.
E. Unprecedented Cleaning Convenience: Minimizing cross-contamination between flavor batches is critical. The system features a full-open top cover, quick-release sealing mechanisms, and highly adjustable rotor clearance. This low-residue design eliminates hidden dead zones, allowing operators to perform rapid washdowns and efficient material changeovers.
Configuring the optimal blending solution requires a detailed assessment of your production parameters. Follow these essential steps to define your equipment specifications:
Note: Mixer selection is a very important step. Your detailed material information, processing conditions, and factory arrangement are very helpful to get professional technical support from us.
The following table outlines the standard dimensional and performance metrics for our horizontal ribbon blender series. Please reference these parameters to ensure compatibility with your facility's spatial and electrical infrastructure.
If you want to get detailed information about the horizontal ribbon mixer price, custom configurations, or integration options, you can click here to contact us!
