Product Overview

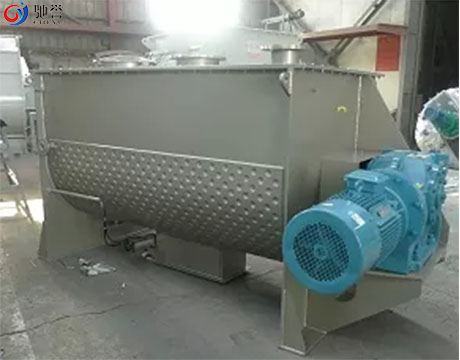

U Type Horizontal Ribbon Blender is a mature and widely used industrial dry powder mixing equipment independently developed and produced by ChiYu. Adopting U-shaped trough body and double-layer positive and negative spiral ribbon structure, the equipment relies on horizontal rotating stirring principle to realize rapid convection, flipping and uniform mixing of various powder and granular materials. The machine features fast mixing speed, uniform mixing effect, no material dead angle and no material fragmentation. It can adapt to food, pharmaceutical, chemical, plastic and other multi-industry material mixing scenarios.
The product series covers small, medium and large capacity models from 0.1m³ to 12m³, with wide adjustable loading coefficient and strong production flexibility. It supports multiple personalized extended configurations such as heating and cooling, liquid spraying, vacuum pressure, explosion-proof and anti-stick coating. With the advantages of energy saving, high efficiency, convenient installation and high cost performance, it is the preferred conventional mixing equipment for modern industrial powder processing.
Scope of Application
ChiYu Co., Ltd. is a professional supplier of Mixer, Powder Mixer and U Type horizontal ribbon blender. This series of horizontal ribbon mixing equipment has extremely wide material adaptability and industrial applicability. It is suitable for mixing and homogenizing various powdery and granular materials, including 3-in-1 coffee powder, milk powder, flour, seasoning powder, food additives, milk tea powder, cocoa powder, Chinese herbal medicine powder, western medicine powder, grain powder, ice cream powder and other food and pharmaceutical powder materials. In addition, it is also widely used in industrial fields such as PVC compounding, plastic powder and various chemical powder mixing processes, meeting the diversified mixing needs of food, medicine, chemical industry and new plastic materials.
Working Principle

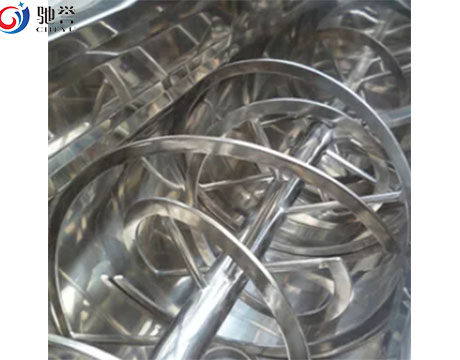

Ribbon Blender (also named ribbon mixer) is a basic industrial mixing machine. They consist, basically, of a trough-shaped shell (usually 2 to 3 times longer than it is wide) with a semicircular bottom, fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws set at a fairly close clearance to the semicircular mixer body so that no layer of material remains on the bottom of the ribbon mixer. The most effective design of ribbon layout is the double spiral in which the outer ribbon moves the product in one direction and the inner ribbon moves it in the opposite direction.
The ribbons rotate and move materials both radially and laterally to insure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 70% of the rated capacity of ribbon blender. During operation, the double-layer spiral ribbons drive the material to produce continuous circulating convection, shearing and flipping movement, eliminate material dead corners quickly, and finally achieve uniform and stable mixing effect in a short time.
Characteristic
A, Fast mixing speed can satisfy the rigorous demand of mixing the materials with different physical property. It can quickly complete the uniform mixing of materials with different density, particle size and dry and wet characteristics, greatly improving production efficiency.
B, The rotation is under critical speed, which will reduce the effect of fragmentation to the material (e.g. Crystal particle). The low-speed stable operation design protects fragile crystal materials and granular materials from crushing and damage, ensuring complete material morphology.
C, Lower height of the container is convenient for installation. The optimized low-body structure reduces the overall height of the equipment, saving workshop space and facilitating on-site installation, commissioning and daily maintenance.
D, The positive and negative ribbons are set up at the same level, forming a mixing environment of low power but high efficiency. The symmetrical positive and negative spiral structure forms a balanced material circulation system, realizing energy-saving operation while ensuring uniform mixing.
Advantage
(1) Large loading factor and small equipment area. The equipment has a high effective utilization rate of volume, with a loading coefficient of 0.4-0.8. It has large single-batch mixing capacity and compact overall structure, occupying less workshop space.
(2) With the shear blade inside, the micro mixing can be achieved. Equipped with auxiliary shear structure, it can break up material agglomeration, realize fine micro-level mixing, and greatly improve mixing uniformity.
(3) According to the production demand, the equipment can be used as a large-scale machine, and the price is cheaper than other mixers. The series covers small, medium and large capacity models, which can meet the needs of laboratory small-batch test and industrial large-scale continuous production, with high cost performance.
Special Add-on Features
ChiYu corporation has been a powder mixer manufacturer since 2013. With decades of industry experience and continuous technological innovation and upgrading, our vortex ribbon blender has outstanding comprehensive performance and supports a variety of personalized extended functions to meet different high-standard production requirements:
1. Vacuum/Pressure customized system
2. Heating/Cooling jacket for constant temperature mixing
3. Liquid spraying nozzle for liquid-solid composite mixing
4. Heavy-duty drive unit for stable long-term operation
5. Various outlet valves optional according to process requirements
6. Full explosion-proof electrical configuration
7. Independent electrical control panel system
8. Teflon coating for material contact parts (anti-stick and anti-corrosion)
9. Other special customized designs as customer required
Technical data
Type | Total Volume(M³) | Loads Coefficient | Motor Power KW | Size(L×W×H) | Net Weight(kg) |
|---|
LT-0.1 | 0.1 | 0.4-0.8 | 3 | 1190×740×770 | 330 |
LT-0.3 | 0.3 | 0.4-0.8 | 4 | 2030×630×980 | 720 |
LT-0.5 | 0.5 | 0.4-0.8 | 7.5 | 2320×730×1130 | 980 |
LT-1 | 1 | 0.4-0.8 | 11 | 2800×920×1320 | 1700 |
LT-1.5 | 1.5 | 0.4-0.8 | 11 | 2800×920×1320 | 1800 |
LT-2 | 2 | 0.4-0.8 | 15 | 3180×1020×1550 | 2100 |
LT-3 | 3 | 0.4-0.8 | 18.5 | 3310×1120×1640 | 3000 |
LT-4 | 4 | 0.4-0.8 | 22 | 3750×1290×1820 | 3980 |
LT-5 | 5 | 0.4-0.8 | 22 | 4220×1400×1990 | 4620 |
LT-6 | 6 | 0.4-0.8 | 30 | 4220×1500×2100 | 6180 |
LT-8 | 8 | 0.4-0.8 | 37 | 4700×1610×2260 | 8200 |
LT-10 | 10 | 0.4-0.8 | 45 | 5520×2960×2720 | 9520 |
LT-12 | 12 | 0.4-0.8 | 45 | 5720×3010×2840 | 9950 |
FAQ
Q: What materials can the U-type ribbon blender mix?
A: It is suitable for food powders such as coffee powder, milk powder, flour, seasoning, cocoa powder and ice cream powder, pharmaceutical powders such as Chinese herbal medicine and western medicine powder, as well as industrial materials such as PVC plastic powder and chemical powder, covering food, medicine, chemical and plastic industries.
Q: Will the mixing process crush fragile materials?
A: No. The equipment adopts sub-critical low-speed operation design, which avoids strong impact and friction on materials, and can well protect crystal and fragile granular materials from fragmentation.
Q: What is the loading range of the blender?
A: The standard loading coefficient is 0.4 to 0.8, which means 40% to 80% of the total tank volume can be loaded for mixing, with large single-batch production capacity and high working efficiency.
Q: What customized functions can be supported?
A: It supports vacuum/pressure system, heating/cooling jacket, liquid spraying device, explosion-proof configuration, Teflon anti-stick coating, various discharge valves and other personalized customized upgrades.
Q: Is the equipment easy to install and maintain?
A: Yes. The low-height body structure is convenient for on-site installation. The internal structure is simple, with few vulnerable parts. It is equipped with an independent control system, which is easy to operate and maintain daily.
Q: What is the mixing principle of the horizontal ribbon mixer?
A: The outer and inner double spiral ribbons drive materials to move in opposite directions, forming radial and lateral circulating flipping and convection, realizing rapid and uniform mixing without dead corners in a short time.
Q: What models are available for production?
A: The model range covers 0.1m³ to 12m³, which can meet small-batch laboratory testing, medium-scale pilot production and large-scale industrial mass production.
Q: Does the machine support liquid-solid mixing?
A: Yes. By adding an optional liquid spraying nozzle device, the equipment can realize uniform spraying and mixing of liquid materials in powder materials, realizing liquid-solid composite mixing process.
